Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications

Brand Name : SPR-ing

Model Number : SP025

Place of Origin : Shenzhen

MOQ : 1

Price : 200~800 USD

Payment Terms : L/C,T/T

Supply Ability : 1000/month

Delivery Time : 1~3 weeks

Packaging Details : Carton

Available loop : 36 or 56

Rated voltage/current : 0–240VDC / 2A

Max speed : 250 rpm

Lifetime : 10 million revolutions

Temperature range : -40℃ ~ 85℃

Flange dimensions : A/B (36 rings: 66/52.4 mm; 56 rings: 89/75.3 mm)

Contact Now

Custom Slip Ring for OEM Robotics and Automation Solutions
Premium slip ring featuring gold-gold contacts and high-precision manufacturing with tolerances under 0.01mm. Integrated pouring and mirror processing ensure excellent contact reliability and low dynamic resistance (≤10mΩ). Compact design, durable stainless steel shell, and near-zero pressure brush system increase service life and stability. Rated for 0-240VDC, maximum 2A, 0-250 rpm, operating temperature range of -40°C to 85°C.
Technical Specifications
Electrical Specifications
Design Loop 36, 56
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 0-240VDC / Max 2A
Dielectric Strength 250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-250 rpm
Working Life 10 million rpm
Operating Temperature -40℃ to 85℃
Contact Material Gold-gold
Shell Material 303 Stainless Steel
Boundary Dimensions with Flange
Number of Rings Size A Size B
36 rings 66mm 52.40mm
56 rings 89mm 75.30mm
Ring Combination Modes
36-Ring Combination 36-way 2A
4-way 5A, 28-way 2A
4-way 10A, 20-way 2A
56-Ring Combination 56-way 2A
4-way 5A, 48-way 2A

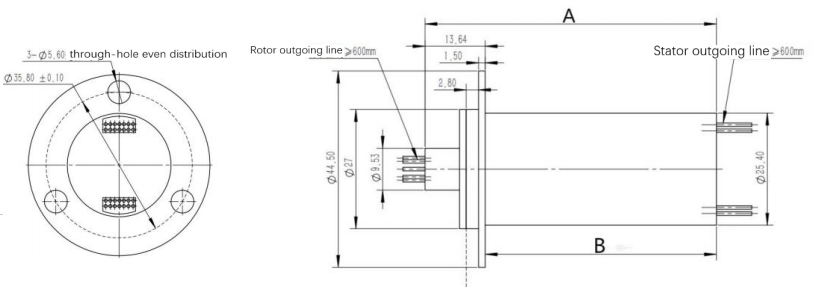

Outline Drawing
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Technical Advantages
  • Gold-gold contact - High conductivity, excellent thermal conductivity, small temperature coefficient of resistance, resistance to vulcanization, oxidation, corrosive gases, good hardness and wear resistance, fusion welding resistance, and arc corrosion resistance
  • Integrated pouring process - Ensures concentricity of ring groove and bearing ≤ 0.01 mm
  • Mirror processing technology - Contact surface finish reaches Ra0.02 for more reliable contact
  • Precision component manufacturing - Dimensional tolerances under 0.01mm for high precision and stable contact
  • Near-zero pressure brush design - Extends slip ring service life by 1/3
  • Compact design - Small size and compact structure to meet space constraints
  • Stainless steel construction - Integral stainless steel metal structure suitable for extremely harsh environments
Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
Brand Name SPR-ing
Model Number SP025
Manufacturing Location Shenzhen, China
Minimum Order Quantity 1 piece
Accepted Payment Methods L/C and T/T
